What’s in a Pathname?

How can you locate something in the filesystem with the least amount of work? You might be tempted to use a graphical (GUI) file manager, but in many cases the command line is faster. If you do a lot of work with your system, learning some pathname power tools can save you a lot of time.

This is the second in a pair of columns about locating things in the filesystem. Last month’s column, “A Very Valuable Find,” explained how to use the find utility to perform sophisticated searches and operations on a collection of files. This month we’ll see what’s really behind pathnames and the current directory, and see tips for working smarter with the Linux filesystem.

Two Paths to the Very Same Place

Let’s start with a few basic definitions.

Using Pathnames

Pathnames can mystify users — even experienced pros who’ve used Linux or Unix for years. Let’s look at some examples to show how pathnames work.

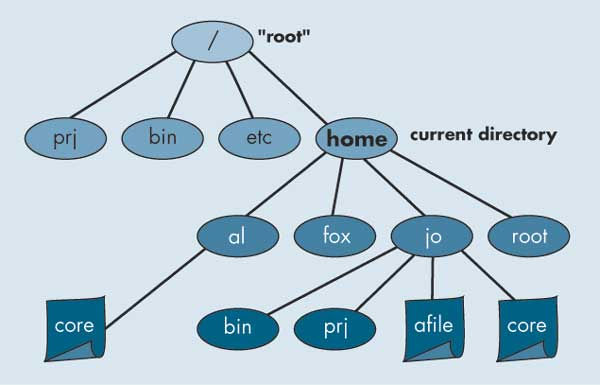

Figure One shows a sample filesystem. / contains four subdirectories, prj, bin, etc, and home, where the latter stores users’ home directories named al, fox, jo, and root. al contains a file named core (a debugging file saved as a program crashes), and jo contains two subdirectories, bin and prj, and two files afile and core. The directory home is shown in bold to indicate that it’s the current directory.








power_01
Figure One: A simplified filesystem tree

When you give a pathname to a Linux program, it follows the pathname to the end and opens whatever is there. If the pathname starts with a slash, it’s an absolute path, so Linux starts searching at /; otherwise it starts at the current directory. Indeed, the main reason for having a current directory is to make relative pathnames conveniently short.

For example, if you type less afile, less (actually, a library routine that less uses) interprets afile as a relative pathname, opens the current directory, and looks for an entry named afile. If there’s an entry for afile, that file is opened; otherwise, you get an error like afile: No such file or directory.

In our sample filesystem, if you ran the command in the current directory, /home, you’d get an error because there’s no afile in it. However, you can read the file afile in jo’s home directory by typing less jo/afile. What happens? jo/afile is also a relative pathname, so Linux opens the current directory to look for an entry named jo. That’s a subdirectory, so it opens that directory to look for an entry named afile. In this case, afile exists, so less opens and shows it.

What other pathname could you have used? You could use an absolute pathname in the command, like less /home/jo/afile. In this case, Linux starts at the root directory, finds the home entry there, finds the jo entry in home, and then opens afile. In this case, a relative pathname was shorter and easier.

Note that simply using a pathname doesn’t change your current directory. To change your current directory you have to give a pathname to the cd command.

If you’ll be doing a lot of work with entries in a particular directory, use the cd command to make that directory your current directory. Then you can use short relative pathnames instead of typing long absolute paths. But, there’s no rule that says you have to change your current directory! If you want to access something in another directory, you can always keep your same current directory and type an absolute path or a long relative path.

For instance, if you’re currently in your home directory (you can always get to your home directory by typing cd ~ or just cd) and want to edit a file in the /prj directory, you can type vi /prj/somefile — and never change your current directory. When you leave vi, you’ll still be in your home directory.

Using Many Paths at Once

Most non-GUI Linux utilities can open a series of files — just name them in series on the command line, separated by spaces. (GUI applications typically make you select files one by one.) A shell reads the Linux command line, and a wildcard like * tells the shell to build a list of pathnames — absolute or relative — that match the pattern.

For instance, if the system administrator is cleaning out users’ home directories, he could type cd /home (making /home the current directory) and then:

$ file */core
al/core: ELF 32-bit LSB core file of 'prog'
jo/core: ELF 32-bit LSB core file of 'sgorp'

What happened? The shell saw the wildcard, looked in the current directory, and built a list of all relative pathnames that have a single slash and end with core. It passed that list of paths (al/core jo/core) to the file program, which tells what kind of file each pathname points to. If the system administrator wanted an ls listing of the files, he (or she) could type ls -l */core. Note that he didn’t need to cd to those users’ home directories; a wildcard and some relative pathnames did the job more quickly.

Of course, core files don’t get dumped just in home directories. Here’s where find comes in:

$ find . -type f -name core -print
./al/core
./jo/core
./jo/prj/core

The system administrator told find to start in the current directory (.) and look downward in its hierarchy for all files named core. find generated a series of relative pathnames starting with ./. (As the sidebar “What’s in a directory?” explains, the leading . is the relative path to the current directory. find always starts its pathnames with the directory you specify. You can ignore this “no-op” ./.)

What’s in a Directory?

When you say that a file is “in a directory,” what does that really mean? It means that the file’s name is listed in a special kind of file called a directory file. On traditional filesystems, at least, a directory holds a series of filenames and i-numbers. Here’s a simplified picture of what our /home directory file could contain:

.     3335
..    264
root  4261
al    13256
jo    43600
fox   50133

People use the names to locate a file. Deep down, though, Linux uses the i-numbers. If your current directory is /home and you type the command cd al, Linux sees that al is a relative pathname (no slash at the start), so it checks the current directory for an entry named al. As you can see, that’s i-number 13256. So Linux opens the inode (filesystem index node) with i-number 13256 and locates the actual al directory on the disk.

Notice the special entries named . and ... Every directory has those entries. The . is a link to the current directory, and .. is a link to the parent directory (the directory that contains this directory). So, for instance, if you type cd .., Linux opens the directory at i-number 264.

“So,” you might ask, “if the root directory has i-number 264, what’s that entry named root?” The answer is that the directory named root, here with i-number 4261, is the home directory for the user named root, the superuser. Its absolute pathname is /home/root — very different than the root directory, with absolute pathname /.

Note that our current directory is named home, but you can’t tell that from looking at the directory entries. Where is its name? A directory’s name is kept in its parent directory! But all directories have a link named ., which is a handy way to refer to the current directory — from the find program, for instance.

If the system administrator wanted to remove the core files, he could type the following command, using -i to be prompted before each file:

$ rm -i al/core jo/core jo/prj/core
rm: remove al/core? y
rm: remove jo/core? y
rm: remove jo/prj/core? y

But there’s an easier way. The shell operator $( ) replaces a command with its output. So you can tell the shell to use the output of find as arguments to rm -i like this:

$ rm -i $(find . -type f -name core -print)
rm: remove ./al/core? y
rm: remove ./jo/core? y
rm: remove ./jo/prj/core? y

That’s called command substitution, and it’s one of the powerful shell features that are hard to duplicate in a GUI. (In tcsh, csh and early Bourne shells, command substitution uses backquotes ` ` instead of $( ). In fact, backquotes work in all shells.)

Of course, if the system administator wanted to remove all of the core files (in the first two levels of subdirectories), he could have used rm */core */*/core.

Keeping Track of Many Pathnames

What if the find had found many more files? What if the system administrator wanted to run file first, to be sure all core files were really program debugging output, but then not need to re-enter all of those filenames that are files to remove?

The command substitution example above hints at the powerful ways that shells have for building command lines with pathnames. There are plenty of other ways — we’ll see some in this article and more later.

For example, instead of running find over and over to get a list of pathnames for each command, you can use command substitution to store the pathnames in a shell variable. In the next example, the first command stores the pathnames in a shell variable named paths. The second command runs file to see what sort of file each of the pathnames leads to. The third runs rm after the system administrator is sure they’re all safe to remove:

$ paths=$(find . -type f -name core -print)
$ file $paths
./al/core: ELF 32-bit LSB core file of 'prog'
 .
$ rm $paths

The system administrator might find some core files that should not be removed. (Maybe those files have core concepts for a new product.) How can he make a list of files that should be removed? One great trick is to redirect find’s output into a temporary file, then edit the file to include pathnames you want to remove. (This trick also works well with commands like ls -lt, which produces lists of files with lots of info, sorted by date.)

$ file $(find . -type f  -name core -print) > /tmp/x
$ vi /tmp/x
$ rm $(cat /tmp/x)

As find runs, the pathnames it prints are gathered by command substitution and passed to the file program. The output of file is redirected to a temporary file named /tmp/x. A quick session in vi leaves only the pathnames of files to remove. The third command uses command substitution again: this time, cat emits the edited list of pathnames onto the command line of the rm program, which removes them. (The first few times you do this, add an echo before the rm command — echo rm $(cat /tmp/x) — to see what rm would do without actually doing it. echo simply outputs its command-line arguments.)

Another great pathname-cruncher is xargs. It’s similar to command substitution, but the GNU version (which probably comes with your Linux system) has an advantage. Let’s look at the previous example. What if one of the pathnames had a space in it, like ./al/my files/core? That’s a legal pathname, but when command substitution sees that pathname, it can treat the space as an argument separator and break it into two separate paths, ./al/my and files/core. You can spot that while editing the /tmp/x file, but automated use of rm on broken pathnames can cause big problems!

The solution is to use the find operator -print0 and the xargs option -0, as shown below (both of those are the digit zero). Instead of outputting a newline character after each pathname, as -print does, the -print0 operator outputs an ASCII NUL character after each pathname. xargs reads the NUL-separated pathnames and feeds them to rm without the dangerous pathname-breaking at space and newline characters. Here’s a command that searches for all core files and removes them without asking:

$ find . -type f -name core -print0 | xargs -0 rm

xargs reads pathnames from find and executes rm with those arguments. This is more efficient than running one rm command for each pathname, as the find operator -exec rm {} \; would do.

Well, there’s much more to cover, but we’re out of room for this month! To summarize briefly: a pathname comes in relative and absolute styles. The main purpose of a current directory is to make relative paths shorter. But you don’t need to cd everywhere — you can use paths to other directories whenever it’s convenient. Finally, Linux has some powerful ways to use many paths on one command line, which can save you a lot of work.

And that’s what power tools are all about: saving you work and giving you more time to do the good stuff. (Now, what’s the pathname to my copy of Quake?)

Jerry Peek is a freelance writer and instructor who has used Unix and Linux for over 20 years. He’s happy to hear from readers; see https://www.jpeek.com/contact.html.
