If you’re like most IT professionals, you get floods of email. Some is probably worthless, but you need to read, organize, and store all the rest. All email programs — sometimes referred to as Mail User Agents or MUAs — let you read and handle incoming mail and send new messages. Most modern MUAs have lots of handy features, but most of them are also crippled by their “one-size-fits-all” interface, with only the features that the MUA’s developers put there. (And if Microsoft wrote the MUA, you’re even more restricted by a proprietary storage format and vulnerabilities that you can’t fix yourself.)

There’s no one “perfect” solution for every email user, from casual to pro. So, in this article, we won’t try to choose one. Instead, we’ll help you make a system that fits you. By learning the fundamentals of how email is transmitted, received, edited, and stored, you can build your own custom solution. Or, if you use an “off-the-shelf” package, you’ll still be able to understand what’s going on “under the hood.” Let’s dig in!

What’s in a Message?

To automate email processing, it helps to know how a message is constructed and delivered. Armed with that information, you can then parse messages, search through them, and edit them with a script or a mail-filtering system.

An email message is a series of lines of characters. It has two parts, the header and the body, which are separated by an empty line. The entire message is transmitted in an envelope, typically via the SMTP or ESMTP protocol.

An email message header has meta-information about the message and it’s a series of header fields. Listing One shows some fields from a typical header. The email header begins on the first line of the message. Header fields start in the first character position of a line, and long fields can be split across lines as long as continuation lines are indented with space or tab characters — as the Received: cc: and Content-Type fields are in Listing One. The header ends with an empty line (no whitespace allowed). (If you’re wondering why there’s a plus sign + in the cc: header, see the sidebar “Power Tip for Mail Administrators.”)

Received: from mail.foo.xyz ([192.168.2.109])
  by mail.jpeek.com (Postfix) with ESMTP
  id 661467E4C for <jpeek@jpeek.com>;
  Thu, 26 Jun 2003 05:03:59 -0700
Received: (from joe@orange.foo.xyz)
  by mail.foo.xyz (8.12.3/8.12.3) for
  <jpeek@foo.xyz>; Wed, 25 Jun 2003 21:13:29
Message-ID: <44918.1801.JavaMail.root@accu21>
Date: Wed, 25 June 2003 23:13:22 -0400 (EDT)
From: “Joe D. Oakes” <joe@foo.xyz>
To: BigProj testers <bigproj@foo.xyz>
cc: Jerry Peek <jpeek@foo.xyz>,
  Bigproj archive <archive+bigproj@foo.xyz>
Subject: Big Project Update DRAFT, June 2003
MIME-Version: 1.0
Content-Type: multipart/mixed;
  boundary=“——-080601060509020103040709”
X-Loop: jpeek@jpeek.com

The other part of a message is the body. Originally, a message body was just a series of lines of plain seven-bit ASCII text. The MIME standard extended the seven-bit email world to carry non-English languages and data reliably. If a message header has a MIME-Version field, the body is in MIME format; Content-Type describes the body format.

Mail Folders in mbox Format

Most email systems store multiple messages in a folder or mailbox — which, on many systems, is actually a plain-text file in mbox format. Each message begins with a separator line composed of the word From followed by a space, the envelope sender address, and the date received. For example, From jpeek Thu Jun 26 08:15:09 2003 is a separator line. Messages often end with an empty line, but this isn’t required. Listing Two shows a typical folder in mbox format with three (short) messages.

From joe@foo.xyz  Thu Jun 26 05:03:59 2003
Received: from mail.foo.xyz ([2.75.12.109])
  by mail.jpeek.com (Postfix) with ESMTP
  ...most of header and body omitted...
AAAAA82kBC
————-080601060509020103040709-

From jpeek  Thu Jun 26 08:15:09 2003
Received: from jpeek.com (kumquat.jpeek.com
  ...most of header and body omitted...
and thanks for the great report, Joe.
>From now on, let’s do them just like this!

From lucky1@bork.pe  Thu Jun 26 08:22:33 2003
Received: from msater.ru ([212.22.234.7])
  ...most of header and body omitted...
to get rich <EM>fast</EM>!!!!!!
</BODY>
</HTML>

Notice that the last line of the second message starts with a greater-than (>) character. This line was escaped upon delivery to the folder because the original message line started with From and a space; left unchanged, this line would (wrongly) act as a message separator. This is one problem with the mbox format. The sidebar “Mail, MH-style” explains one solution.

Sending Messages

When you send a message to someone on another host, the message probably follows a path something like Figure One.

We’ve discussed all but two pieces of that path. First, the Mail Transfer Agent (MTA) is a program that sends and receives users’ messages. Two popular MTAs are sendmail and Postfix. Second, a mail spool file is also called a “mailbox” or “inbox” file. It’s typically named for its user and stored in a directory like /var/spool/mail or /usr/mail. On many systems, it uses the mbox format we saw in Listing Two. Messages wait in the mailbox until the recipient uses her MUA to read “new mail.” That’s when she can delete messages and move messages to other folders. She can also leave the messages in the spool file — so, for instance, a POP or IMAP server can serve them over a network to wherever she is.

Almost all of this can be customized with tools like procmail and fetchmail, which we’ll cover later in this article. For more about email administration, see “Administering Email” in the May 2001 issue of Linux Magazine, available online at http://www.linux-mag.com/id/791/.

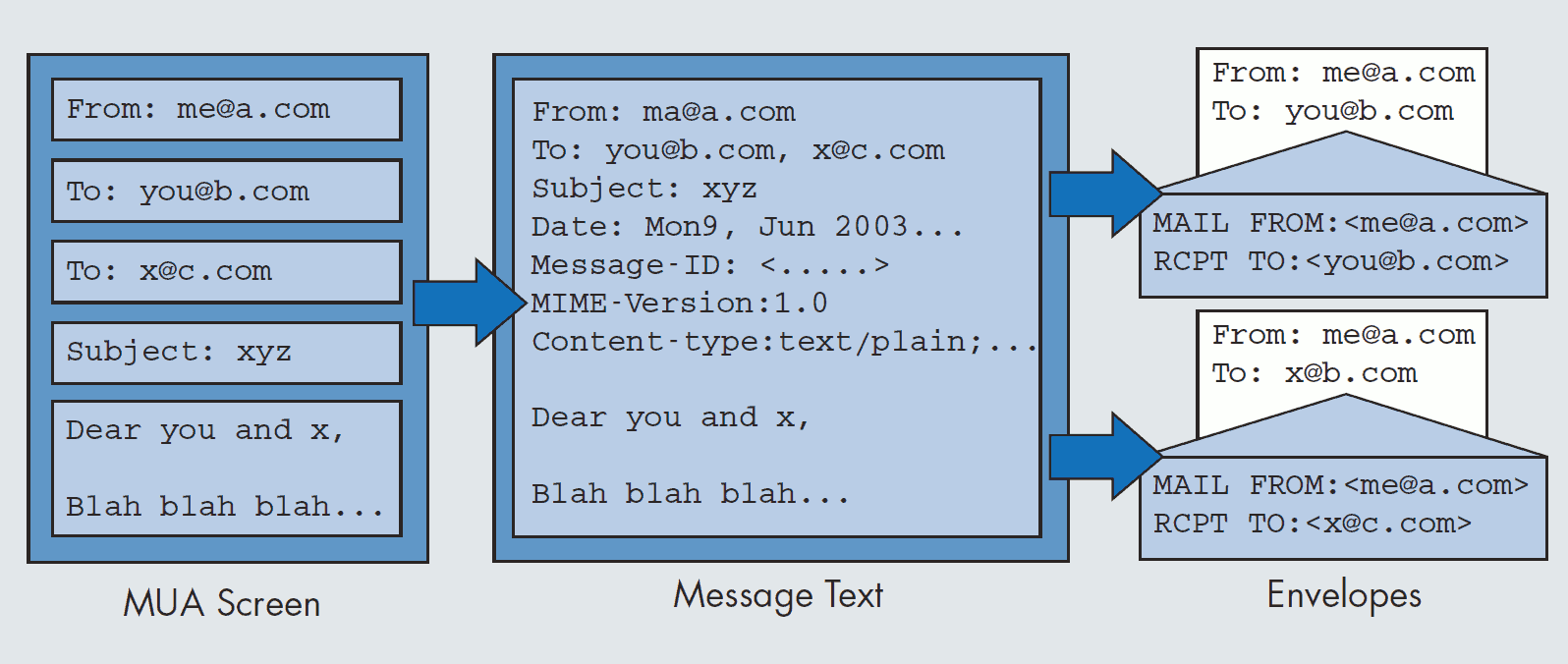

One important piece of this puzzle isn’t shown in Figure Two: how a message is addressed and delivered. Let’s see how that works next.

Figure Two: A message and its envelope

The Message Envelope

A message has a sender and one or more recipients. Where are their addresses? Are they in the From:, To: and cc: header fields? (Look back at Listing One for reference.) Although they may be, they often aren’t!

For example, our sample message in Listing One was addressed to jpeek@foo.xyz, but — as it turns out — this particular message was delivered to jpeek@jpeek.com. This delivery address doesn’t appear in the header. (Actually, in this case, the MTA wrote that address into a Received field — which is handy but not required.)

This particular message was from the person in the From field — joe@foo.xyz — but that’s not always true. Think of messages from spammers, for instance, who almost always use bogus addresses. (Actually, Joe sent this from his workstation, where his address is joe@orange.foo.xyz — but he or his MTA set his canonical address to: joe@foo.xyz instead.)

So where are the sender and recipients? In the message envelope — as part of the transaction that delivered the message over the network. This is a fundamental and important part of email delivery that’s often forgotten. Figure Two shows the situation for one of this message’s many recipients, auser@somewhere.abc.

How does the MTA get the sender’s and recipients’ addresses? It may parse the message header (To:, cc:, etc.), but you can also pass addresses to the MTA in other ways — on its command line, for instance.

However the MTA gets the addresses, it looks up each recipient’s mail server (with a DNS lookup) and opens an SMTP (Simple Mail Transfer Protocol) connection to it. The conversation between MTA’s looks something like Listing Three. (We’ve added send: and ack: to label lines from the sender’s MTA and acknowledgements from the remote MTA.)

ack:  220 I am smtp.somewhere.abc
send: HELO mail.foo.xyz
ack:  250 So happy to meet you
send: MAIL FROM:<joe@foo.xyz>
ack:  250 Sender OK
send: RCPT TO:<auser@somewhere.abc>
ack:  250 Recipient OK (local)
send: RCPT TO:<buser@somewhere.abc>
ack:  550 <buser@somewhere.abc> unknown
send: DATA
ack:  354 I am ready for the message
send: Received: (from joe@orange.foo.xyz)
send:    by mail.foo.xyz ...
send: From: FooCorp Staff <staff@foo.xyz>
send: To: BigProj Testers <bigproj@foo.xyz>
send:   ...
send: .
ack:  250 Received and stored 9373 octets.
send: QUIT
ack:  221 smtp.somewhere.abc signing off.

This message had two recipients served by smtp.somewhere.abc. The server rejected one of them as unknown, so the envelope sender joe@foo.xyz (and not staff@foo.xyz) will get an emailed bounce notice from the MTA at mail.foo.xyz.

The MTA at mail.foo.xyz may need to repeat the process in Listing Three many times to deliver this same message to each of its recipients. The message header and body don’t change; each recipient gets the same message, but the envelope is different for each recipient — just as it would be if you were sending a photocopied, “snail-mail” letter to many different people.

Notice again that the header contains neither the recipients’ addresses or the actual envelope sender. (The sender’s or recipient’s MTA may add these to a header field like Received, but that’s not required.) Understanding these concepts will help you do reliable automated mail processing. (For instance, what happens if some message from a procmail setup is undeliverable? Does it start an endless mail loop?)

You can control the message envelope by calling the MTA directly. We’ll see this important technique soon.

Sending Mail With a Simple MUA

An easy way to email “just text” (no graphics, no multipart messages) — a text file or program output, for instance — is with mail, a simple Linux MUA. Its command-line arguments build the message header. The -s option adds a Subject field, and -c adds cc addresses. (Some older versions don’t support those options.) Other arguments are addresses for the To field. It’s safest to use the simple user@host syntax — no names or characters like " (double-quote) or <>. mail reads the message body from its standard input.

The first example below passes mail a subject field and the two addresses jo@a.b and ed@c.d. It uses the shell operator < to redirect the file log to the standard input of mail.

The second example mails the standard output of the program prog to yourself; your address comes from the $USER environment variable (although you may need $LOGNAME instead).

% mail -s “build log” jo@a.b ed@c.d < log
% prog | mail -s “prog output” $USER

Sending Mail Without an MUA

mail can forward existing messages, but it adds a new header. To send the original body and header, invoke an MTA directly, like an MUA might. This gives you complete control of the message header, body, and envelope. Give the MTA a complete message — header and body — for delivery. This can be useful from the command line — for instance, to resend a message to other addresses without adding a new header. It’s especially useful for automated mail processing from a program or from procmail.

Listing Four has an example with the sendmail MTA. (It also works with sendmail-type interfaces, such as the Postfix sendmail command.) We’re sending this little message to me@local.xyz. The envelope sender is set to me@remote.xyz. Setting the envelope sender to another host, like this, could prevent mail loops as we test because any bounces should be sent there.

$ cat msg
From: “Joe D. Oakes” <joe@foo.xyz>
To: Some test user <myfriend@foo.xyz>
cc: Other test user <someone@foo.xyz>,
  Jerry Peek <jpeek@foo.xyz>
Subject: test message

This is a test message.
$ /usr/sbin/sendmail -f me@remote.xyz me@local.xyz < msg

(If you haven’t worked with MTAs before, we suggest practicing before you try this example. There’s an MTA tutorial in the online companion to this feature at supplemental/0307_webpage_1.html.)

As cat shows, the msg file has a bare-bones message. This new message has no Message-ID or Date fields.

After you send the message, read your local.xyz spool file (if possible) with a read-only file browser — for example, less /usr/mail/me. Compare the original msg file to the message you received. The MTA should have added a Message-ID field. The sidebar “Mail Message IDentifiers” has more about that.

Header Editing with sed

If you process mail automatically — with procmail, for instance — you may need to edit message headers. (There’s a procmail tutorial in the July, 2001 issue, online at http://www.linux-mag.com/id/826/.) A simple way to do this is with the stream editor sed. sed reads standard input and writes to standard output; editing commands come from its command line or a script file. (Why sed instead of, say, Perl? sed is a small editing program that’s quick to start. This can speed up procmail on busy hosts.) Try the following two commands interactively (at a shell prompt) to edit your msg file from Listing Four:

% sed 's/test/TEST/' < msg
% sed '1,/^$/s/test/TEST/' < msg

The first sed command changes the first test on every line — both header and body — to TEST. To edit only the header, we added the address range 1,/^$/ in the second command. This tells sed to start editing at line 1 and end at the first line that matches the regular expression ^$ — which is an empty line. A header always ends with an empty line.

Let’s see an example. You subscribe to a mailing list from bigcorp.za. One of the experts on that list is ImanXprt@somewhere.com.au, who’s working on a project like yours. You’d like to forward his list messages (but not any personal messages he might send you) to three of your staff. You modify the message subject by adding FWD: to the start. That’s all done with this recipe in your .procmailrc file:

:0 c
* ^x-mailing-list: mfgproc@bigcorp.za
* ^from: .*ImanXprt@somewhere.com.au
| sed '1,/^$/s/^Subject: /Subject: FWD: /' | \
  /usr/sbin/sendmail -oi groucho harpo chico

After sed filters the message header and edits the subject, the shell pipes the entire message — header and body — to sendmail. The -oi option sets the sendmail IgnoreDots option, which keeps message lines with a single dot (.) from ending the SMTP DATA transfer before the whole message has been sent.

When groucho, harpo, and chico see their email, will their addresses be in the To or cc fields? No! Our script didn’t edit those two fields. The recipients’ addresses are in the message envelope as the MTA delivers the message.

(Why do it this way — instead of, say, forwardng the messages from your MUA? One reason is that your MUA would probably add a new header — so the forwarding messages would come from your address, preventing your staff members from sending a direct reply to the expert. The expert also couldn’t follow the message thread because your staff members’ replies wouldn’t refer to his original Message-ID.)

sed is great for transformations that depend on context; changing part of an individual field or editing based on where the text is in the header. You can also put more complex scripts in files and call them with sed -f. There are more sed examples online at supplemental/0307_webpage_3.html. Often, though, there’s a better header-editor than sed.

Header Editing with formail

The formail utility, from the authors of procmail, has at least two main uses: parsing mbox-format mail files, and editing message header fields. Let’s see how to edit a header.

Automated message processing can cause a mail loop. For instance, a message is delivered to your system’s MTA, which starts your delivery agent (e.g., procmail), which does something that generates another message. For instance, as we saw earlier, procmail might forward the message to other addresses.

To prevent mail loops, your procmail setup can check whether it has already seen a particular message, and if it has, not repeat the recipe that caused the mail loop. One way to do this is by adding an X-Loop: header field in the recipe that forwards the message — but first, in the same recipe, testing to be sure that the message doesn’t already have that field. The field value should be a unique string, like your email address. Here’s a procmail recipe to do that:

:0 c
* !^X-Loop: jpeek@jpeek.com
* !^from: .*a@b\.c
| formail -A“X-Loop: jpeek@jpeek.com” | \
  sendmail -oi -f bounces@b.c a@b.c

This recipe forwards a copy of your mail to the address a@b.c. The c flag tells procmail to pass the message to other recipes below. (You might use this recipe while you’re on vacation.)

The second line tests the message header for our X-Loop: field; if it exists, this recipe is skipped (thanks to the ! “don’t match” operator). The third line also skips the recipe for messages with a From: field containing a@b.c; these are probably original messages sent by that user to you (and she doesn’t need to see a copy of her own messages).

If neither of those regular expressions match, the fourth line invokes a shell to deliver the message. The first | means “pipe this message to a shell with the following command line.” The first command uses the formail option -A to add our X-Loop: field. (Notice that there’s no space after the -A.) Another pipe character (and a backslash, \, to continue the line) sends the edited header and body to sendmail, which delivers the message to a@b.c.

Notice the argument -f mailto:bounces@b.c. This makes sendmail set the envelope sender to a special mailbox for bounced messages; if the copy can’t be delivered, this asks the delivering MTA to send the bounce notice to bounces@b.c — instead of the default, which could eventually reach this procmail recipe again.

formail can do many other useful header edits. Check the options and examples in its man page, and try searching the Web for formail. There are two more examples — and also more information about lockfiles — online at supplemental/0307_webpage_4.html. One example shows a way for a@b.c to “catch” the messages that our previous recipe forwards to her. The other is an “auto-reply” recipe that uses procmail and formail -r to accept a file by email, then email the file, on-demand, to a few specified addresses.

Dividing (and Conquering?) Messages

As we’ve seen, message content is divided into three parts: header, body, and envelope. If you’re searching for particular text — an address, for example — you have to ask yourself what part of a message that text might appear in.

For instance, if you’re looking for mail sent to the address a@b.c are you searching only the message headers? Are you checking both the To and cc fields? Could that address have been only in the envelope? Do you also want to find a message to a@b.c that was forwarded to another address (that is, the recipient’s address appears in the body of another message)?

Storing messages in the mbox format complicates this because you may need tools like grepmail (introduced in the May 2003 “Do It Yourself” column, available online at http://www.linux-mag.com/id/1355/) or formail to split the folder or to search invididual messages.

Then there’s the question of sorting incoming mail. Many MUAs have ways to filter mail automatically — for instance, to put all new messages from Joe into a mail folder named joe. procmail is so flexible that it can out-do almost all of those filters: see our earlier forwarding example, for instance. Understanding the format of a message header and body can help you make procmail recipes that do very specific things.

For instance, an email virus is loose in your company and you want to stop it in its tracks. When you inspect the message by reading the mail spool file or a mail folder (using a pager like less, and not an MUA, so there’s no chance of activating the virus!), you can see that the virus is in a MIME part in the body.

Listing Five has a procmail recipe to catch those messages. It searches for a filename from one of the MIME multipart headers and two lines from the MIME-encoded virus body. (We’ve shortened the lines for printing.)

VIRUSFILE=caught_viruses.gz
:0B :
* > 48293
* < 70000
* (^Content-Type: audio/x-wav; name=Com.bat$)
* (^AAAAAAAA2AAAAA4fug4AtAnNIbgBTM0hVG\+p$)
* (^RE9TIG1vZGUuDQ0KJAAAAAAAAAAYmX3gXPgT$)
| gzip >> $VIRUSFILE ; \
  (echo “  Messages in $VIRUSFILE file:”; \
  zcat $VIRUSFILE | grep "^From ") | \
  mail -s "NOTICE: virus caught" $LOGNAME

The shell command starts with gzip, which reads the message from its standard input and appends the compressed version to an archive. Then a series of commands find the message-separator lines in the compressed file and use mail (explained earlier) to send you an email notice that lists the viruses caught so far. Listing Six shows the result.

From: Jerry Peek <jpeek@jpeek.com>
Date: Thu, 26 Jun 2003 08:45:13 -0400 (EDT)
To: jpeek@jpeek.com
Subject: NOTICE: virus caught

  Messages in caught_viruses.gz file:
From lucky1@bork.pe  Thu Jun 26 08:22:33 2003
From mom@home.ci  Thu Jun 26 08:45:09 2003

This technique is useful for sending any sort of notices from a .procmailrc recipe, notifying someone that something has happened, for instance. For more details about this recipe, see supplemental/0307_webpage_5.html.

Managing Multiple Accounts, Part I: Sending Mail

You might have mailboxes at hosts around your company or all over the Internet. What a tangly mess that can be! This section looks at ways to manage lots of mail accounts.

Let’s say that you have a personal account on AOL, but you’re currently logged onto your company system. Or you’re logged onto your home system, but you want to send email from your company address. There’s no Internet “rule” that says you must send email with the address of the host you’re currently logged on to. Simply set the From field to the address you want to use. If your MTA or email provider won’t allow that, set a Reply-to field instead; MUAs should check this field, and if it exists, they should send replies to that address instead of to the From address. In some MUAs (Mozilla and Netscape, for example), you can set up multiple “accounts”, each with a different From address. So, if you’re at work and you want to send mail from your AOL account, simply use a header that says From: you@aol.com. The message doesn’t have to be routed through an AOL mail server.

In cases like these, you may want to send a copy of the message back to the account you’re emulating. A simple way to do this is by sending yourself a blind copy: put your address in the bcc header field (like bcc: you@aol.com). What does this do? A “blind” address is added to the message envelope, but not to the message header. Unfortunately, some email providers (like Microsoft Hotmail) treat blind copies (where the recipient’s address doesn’t appear in the header) as “junk” because spammers often send blind messages. You may need to send yourself a visible copy (the cc field) instead.

Managing Multiple Accounts, Part II: Receiving Mail

If you get mail at multiple addresses, you don’t have to log in to each of them to “check your mail” everywhere. There are quite a few ways to manage email centrally.

If your MUA supports the Internet Message Access Protocol (IMAP), it can open mail folders stored on a remote host. This lets you maintain mailboxes while you travel, for instance. One disadvantage of IMAP, though, is that it’s not as simple to access your mail without an MUA. For instance, running a weekly cron job to clean out old messages on each host can be tricky.

Another good choice is automatically forwarding some or all mail from your remote mailboxes to a central “mail hub” account, then accessing all your mail by logging onto that one host. If your remote systems support the .forward file, create that file and put a complete destination email address into it. You can also use procmail to forward some or all of your mail.

For instance, the following single recipe in a .procmailrc file on the a.com host forwards all incoming mail to you@b.com:

:0
! you@b.com

(You might want to do some other filtering first — loop-stopping, for instance, as shown earlier.)

The handy fetchmail utility is designed to retrieve messages from multiple accounts around the Internet. Fetchmail starts a session by POP (Post Office Protocol), IMAP, or one of several other protocols to retrieve waiting email from each remote host you specify. Then it opens an SMTP session to some MTA (typically, your local MTA) and writes the messages there. Fetchmail can start a daemon (a continuously-running background process) to do this automatically — or you can run it by hand or from a cron job.

fetchmail is very configurable. What fetchmail can’t do in message retrieval and storage, procmail probably can. For instance, maybe you’d like to put messages from a particular remote mailbox into a particular local folder. To make procmail work together with fetchmail, you’ll look at the message headers from that host to see what makes messages from a particular mailbox unique and then add a procmail recipe to “catch” those messages.

The tracepolls option in Fetchmail versions 5.0 and later makes this easy: it adds the remote host and account name to a Received header field, like this:

Received: from mail.mars.xyz [63.15.21.7]
    by localhost with POP3 (fetchmail-6.2.0
    polling mail.mars.xyz account jerry)

The procmail recipe in Listing Seven would put those messages into the mars folder. This single-line procmail pattern matches multi-line header fields. procmail concatenates fields while it pattern-matches. If you want to do a similar thing with other tools, try filtering messages through formail -c. It makes all header fields single-line.)

Fetchmail can do much more. The program and the details are at http://www.catb.org/~esr/fetchmail. It comes with a GUI Python script named fetchmailconf that simplifies setup and testing.

:0:
* ^received: .*fetchmail-.* polling mail\.mars\.xyz account jerry
mars

Classifying Mail with POPfile

POPfile is a proxy, written in Perl, that sits between your MUA and a POP server. (This means it works with basically all MUAs on any platform that has Perl.) It uses Naïve Bayesian filtering to sort your new messages into categories or “buckets.” Unlike our simple procmail recipe that searches for specific strings of text, Bayesian filtering “learns” to recognize particular types of mail. For instance, it might learn to recognize meeting minutes, work mail versus family mail, or — what many of POPfile’s users use it for — catching spam.

After it classifies a message, POPfile modifies the message header — either adding a word to the Subject, like Subject: [spam], or adding a field to the header, like X-Text-Classification: spam. Then your MUA — or a delivery agent like procmail, if you’ve wired POPfile to grab mail via fetchmail — can decide what to do with each incoming message.

POPfile uses your web browser, with a local HTTP server on port 8080, as a control interface. The most important part of the display is a history of the messages POPfile has classified. POPfile “learns” best by “Training Only on Errors,” or TOE, where you reclassify messages that it got wrong (and it learns the correct bucket). Some users get almost 100% accuracy — although spammers now seem to be hard at work trying to fool this popular spam filter.

The POPfile home page is http://popfile.sourceforge.net.

What Next?

In this article, we’ve looked at everything from the parts of a message (its header and body) and how it’s addressed and delivered (the envelope) to altering message headers with sed and formail, pulling incoming mail from multiple servers with fetchmail, and chosing message destinations (and more) automatically with procmail.There’s a lot more to study to make your email setup as powerful and efficient as it can be. (A quick web search, or a look through newsgroups in the comp.mail hierarchy proves the point.) The fundamentals we’ve gone through should help you on your way.

In next month’s Power Tools column, we’ll look at fetchmail in more detail.
